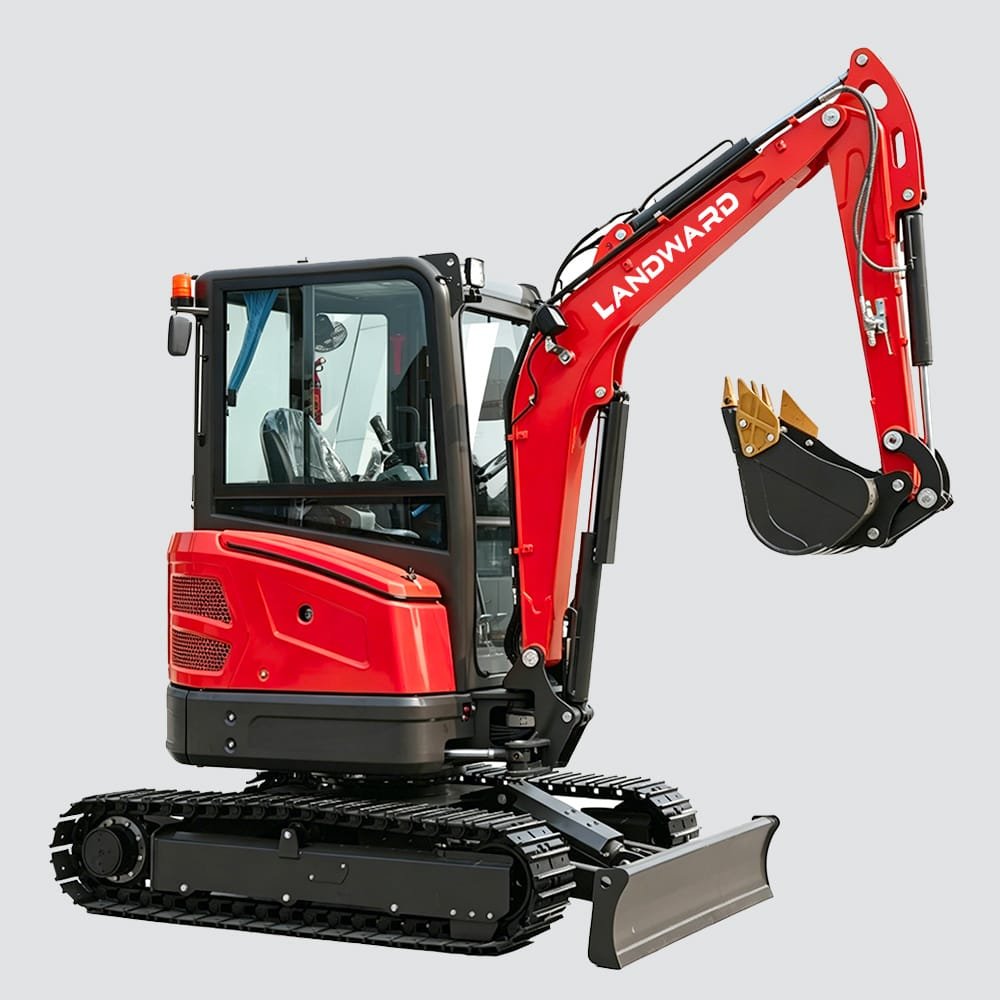

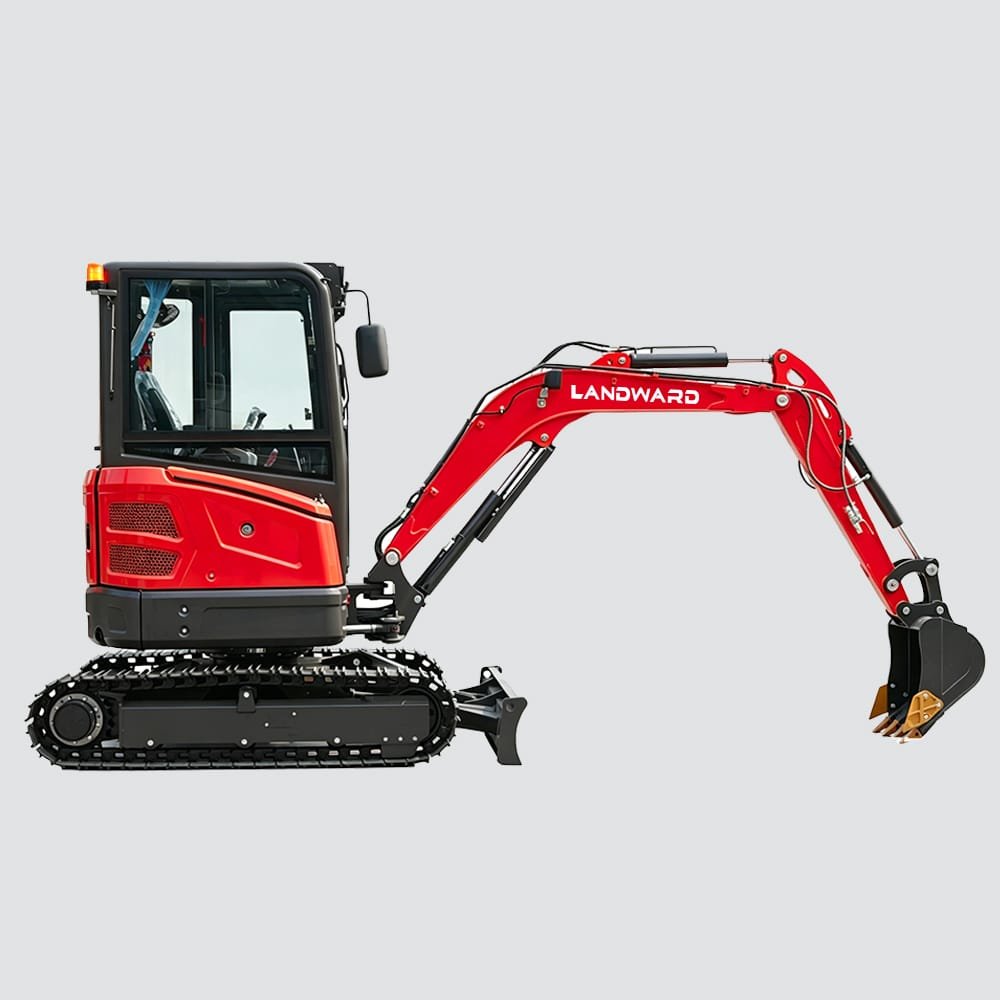

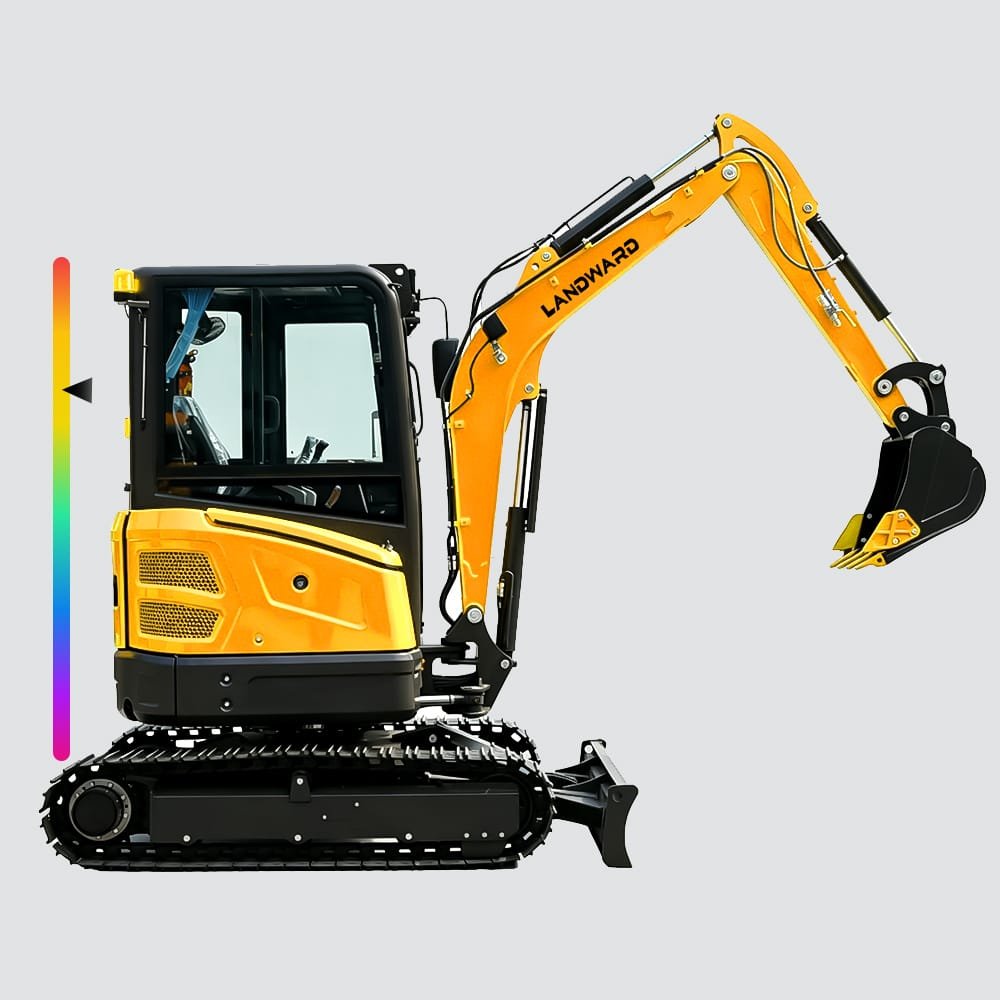

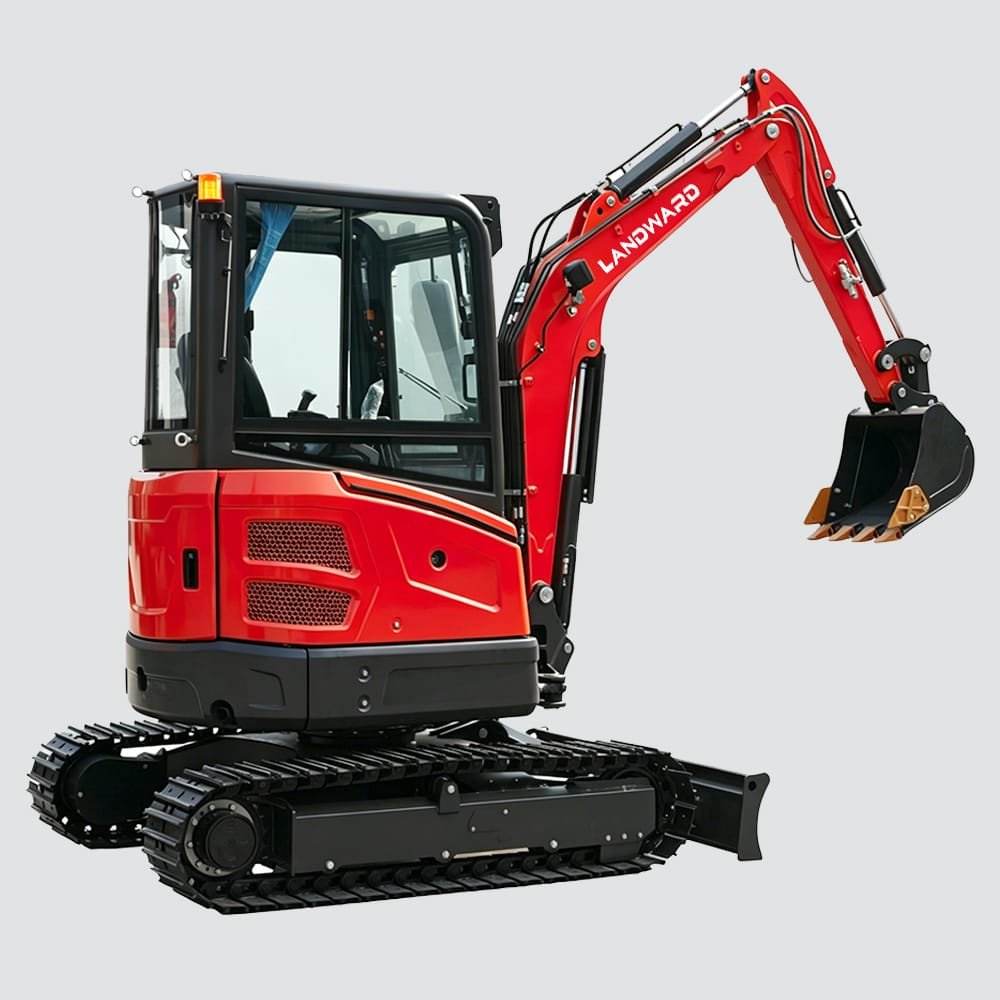

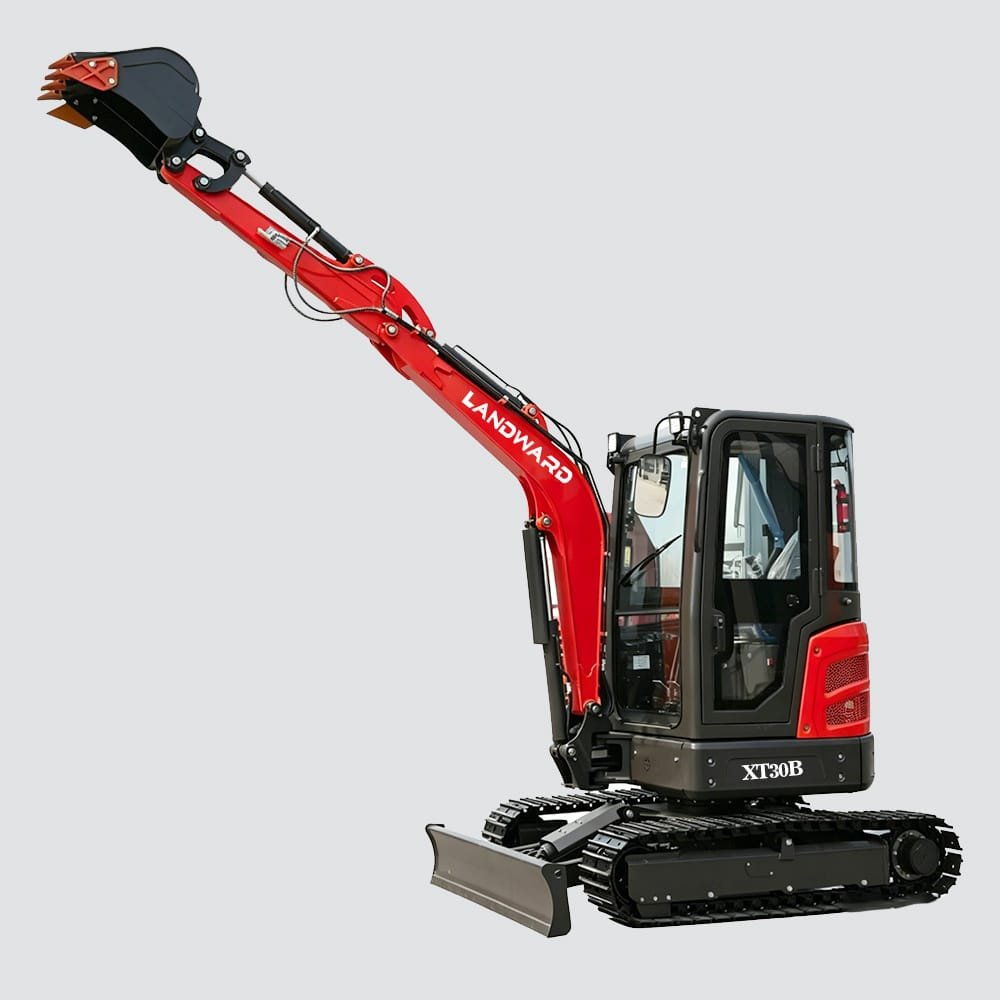

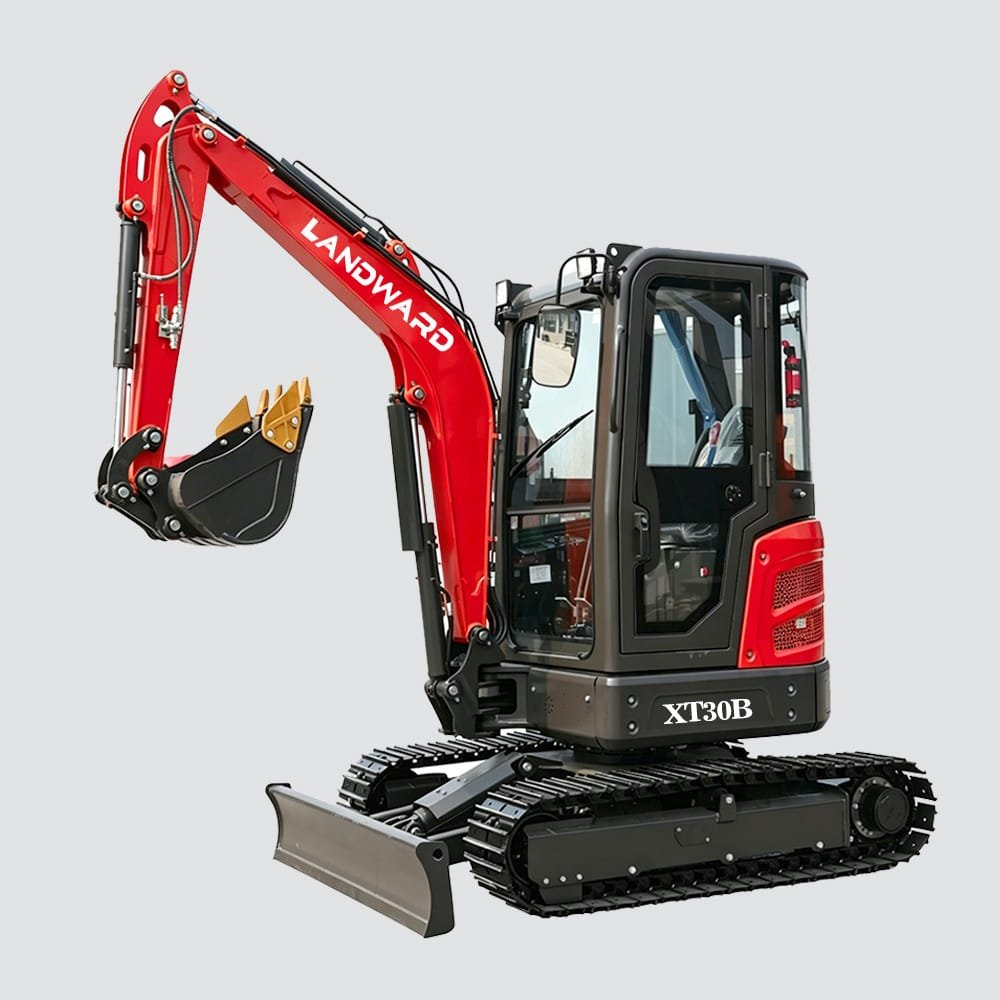

Mini Excavator 3 Ton

1. **Powerful Performance, Eco-Friendly Leadership: International-Class Power Source:** Equipped with an original Kubota D1105 engine, delivering a rated output of 15.4 kW at 2400 rpm. **Superior Emission Performance:** Compliant with National IV emission standards; features direct-injection, water-cooled technology that ensures robust torque output (max. torque: 70.3 N·m) while simultaneously minimizing environmental pollution.
2. **Ultimate Adaptability and Operational Flexibility: Zero-Tail Swing Design:** With a tail swing radius of just 790 mm—combined with an overall track width of 1500 mm—this machine can effortlessly access confined spaces such as urban alleys and private courtyards. **Boom Offset Function:** Supports wide-angle boom deflection (75° to the left / 55° to the right), enabling excavation work right up against walls and in blind spots without the need to reposition the machine body. **Class-Leading Working Range:** Boasts a maximum digging radius of 4750 mm and a maximum digging depth of 2800 mm, handling a wide variety of deep-digging and loading tasks with ease.
3. **Exceptional Operational Performance and Precise Control: Robust Digging Force:** Delivers a bucket digging force of up to 22 kN and an arm digging force of 14 kN, maintaining high operational efficiency even when working in hard ground conditions. **High-Efficiency Hydraulic System:** The main pump features a rated flow rate of 82.8 L/min, ensuring smooth execution of compound movements; the pilot control system maintains a pressure of 3.5 MPa, providing a refined and precise operating feel.

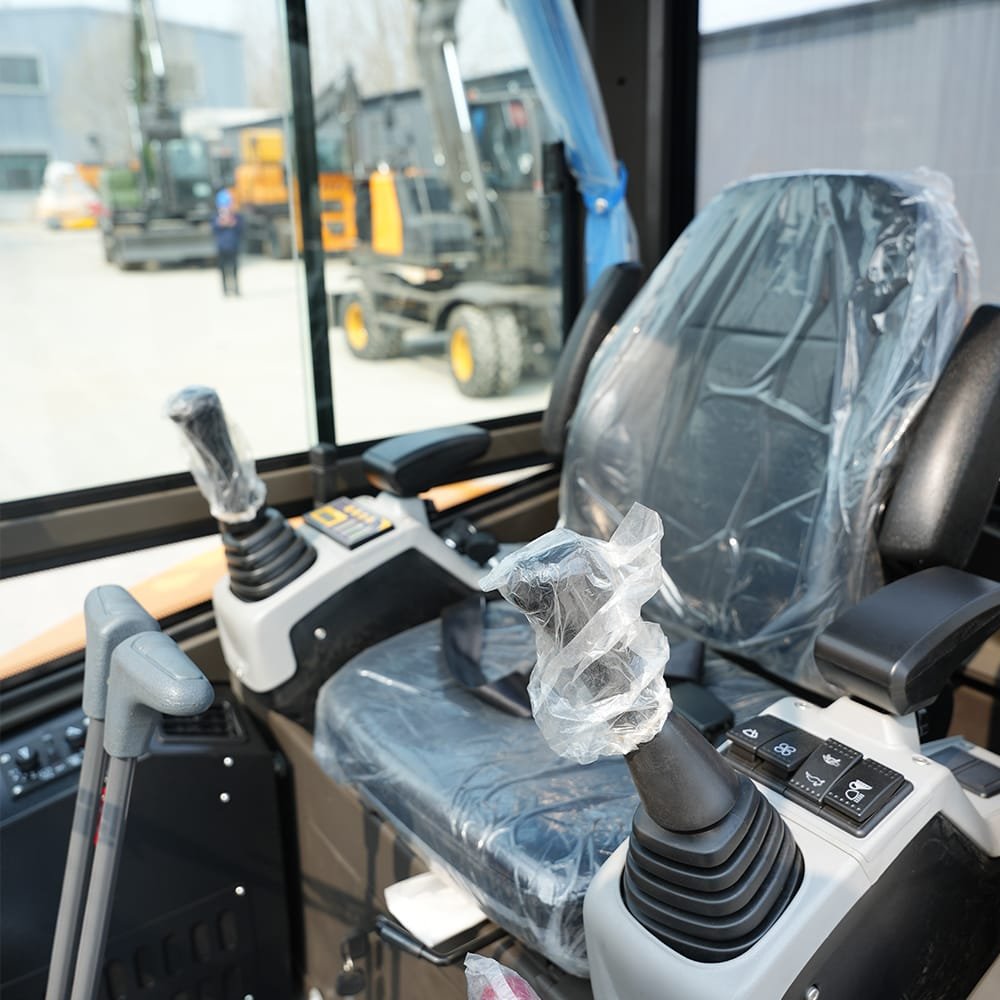

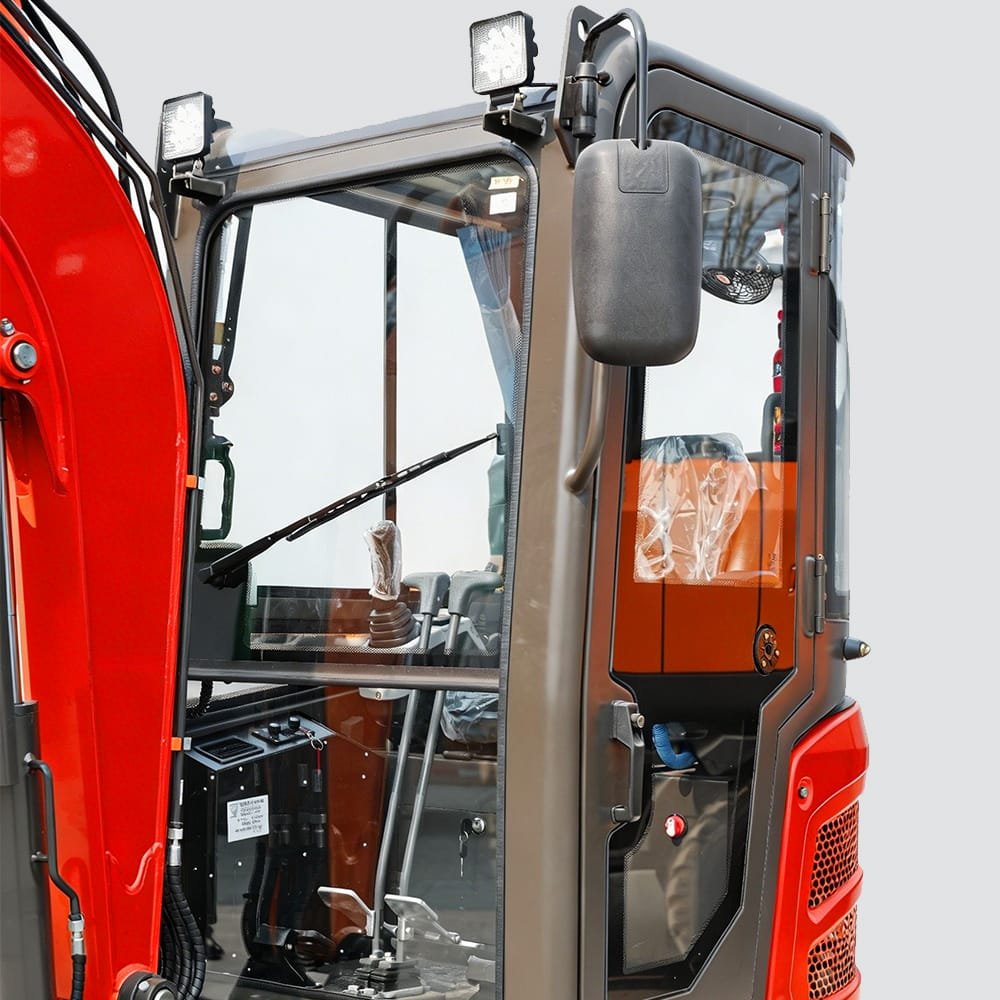

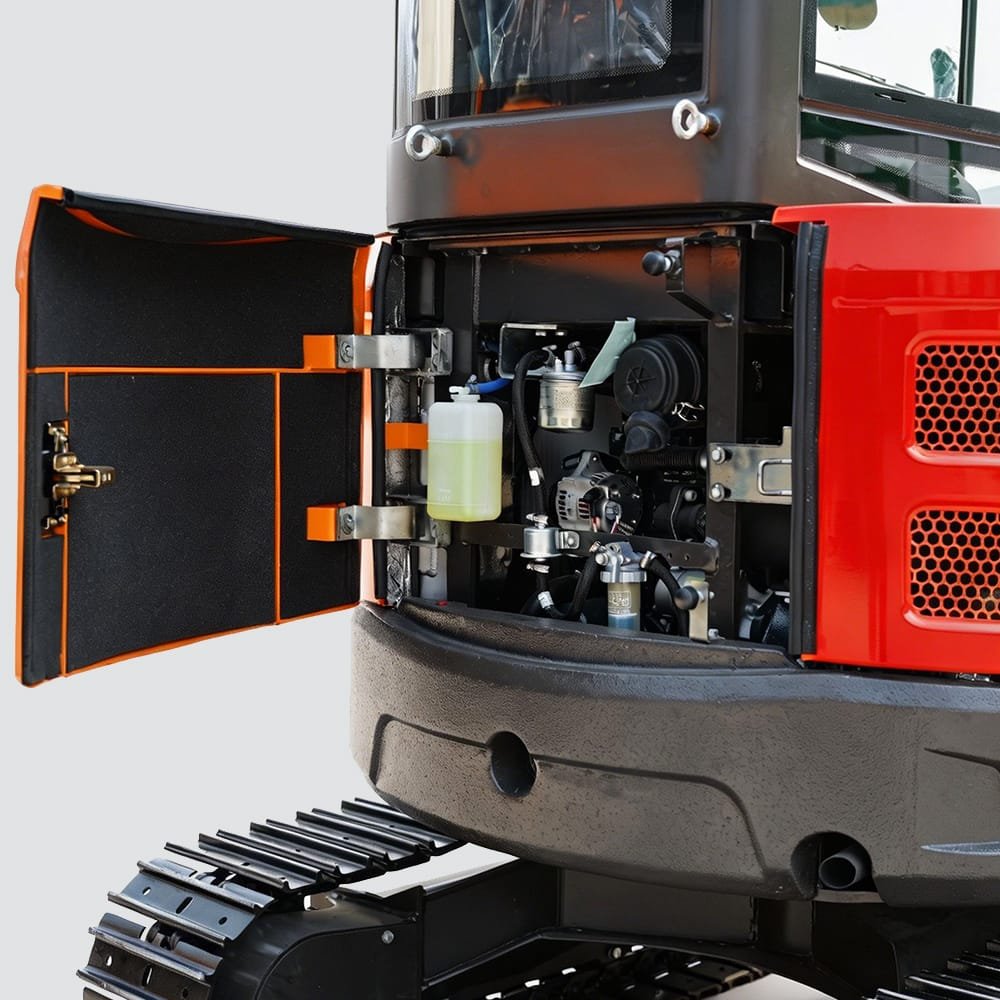

4. **Operator Comfort and Convenient Maintenance: Ergonomic Design:** Focused on enhancing operator comfort, the cabin offers a spacious working environment and an expansive field of view. **Hassle-Free Maintenance:** The machine features a logical layout where all daily maintenance and service points are easily accessible, significantly reducing downtime. **Stability and Reliability:** With a ground pressure of just 26.3 kPa, the machine maintains excellent passability and stability even when operating on soft or loose terrain.
