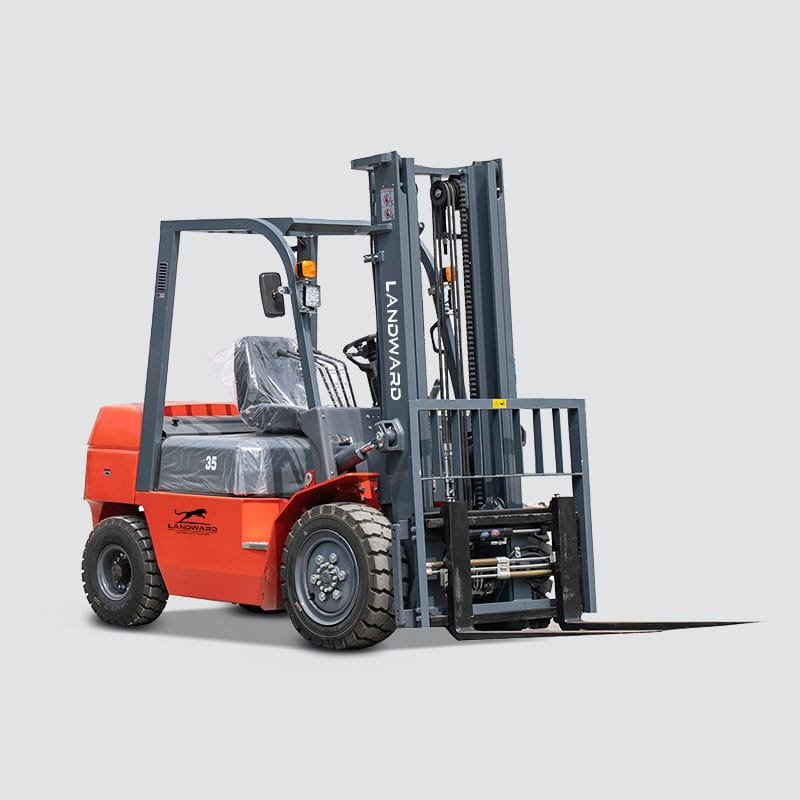

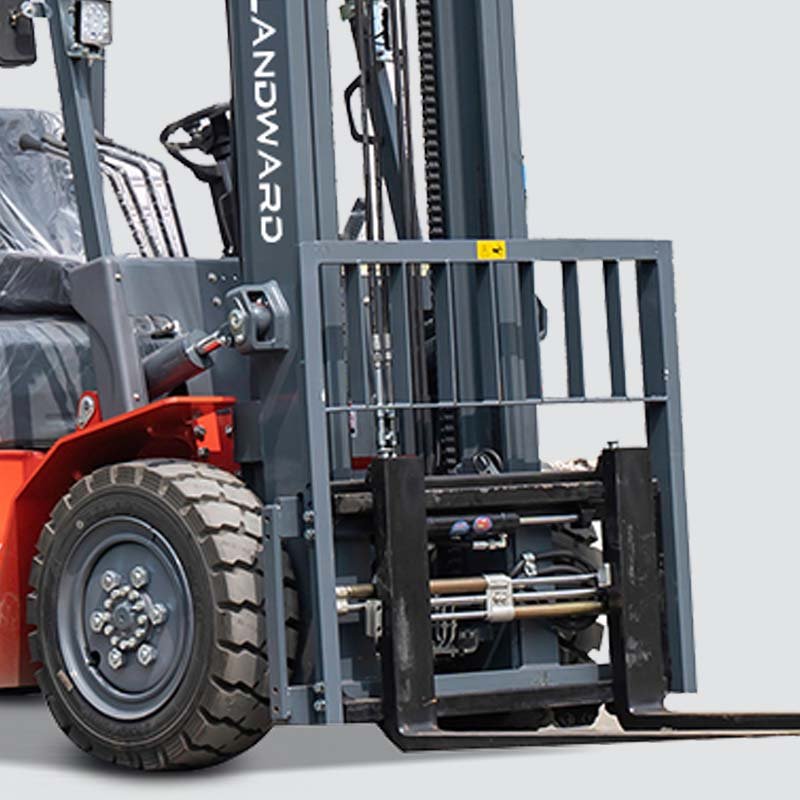

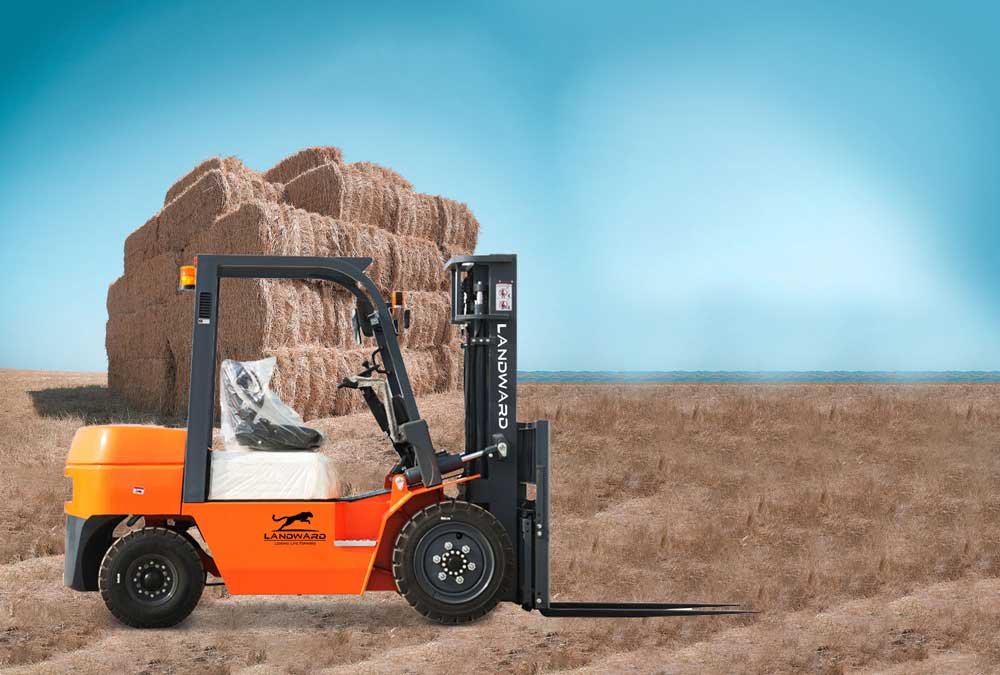

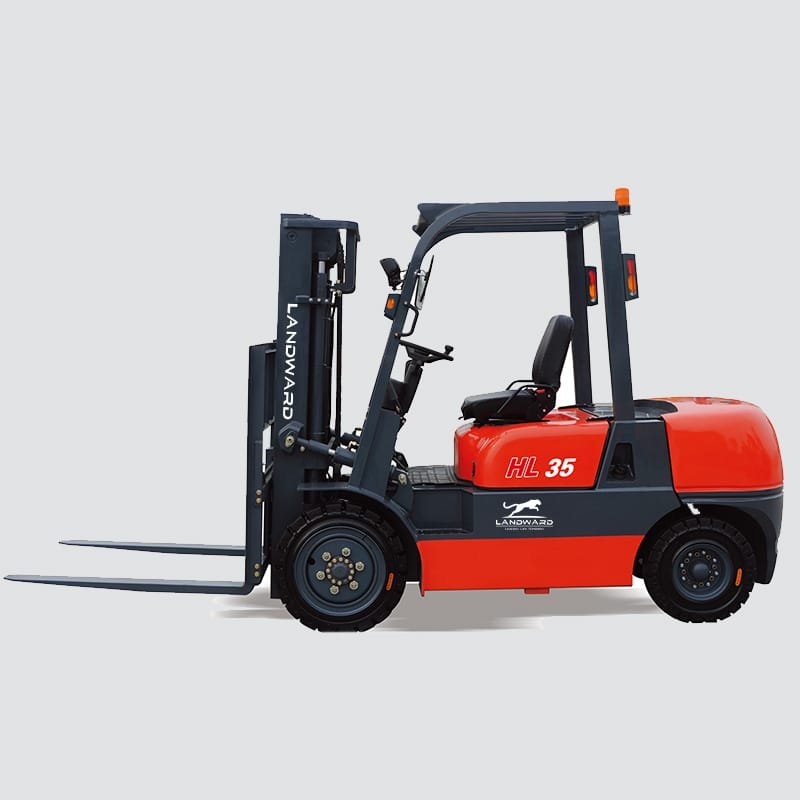

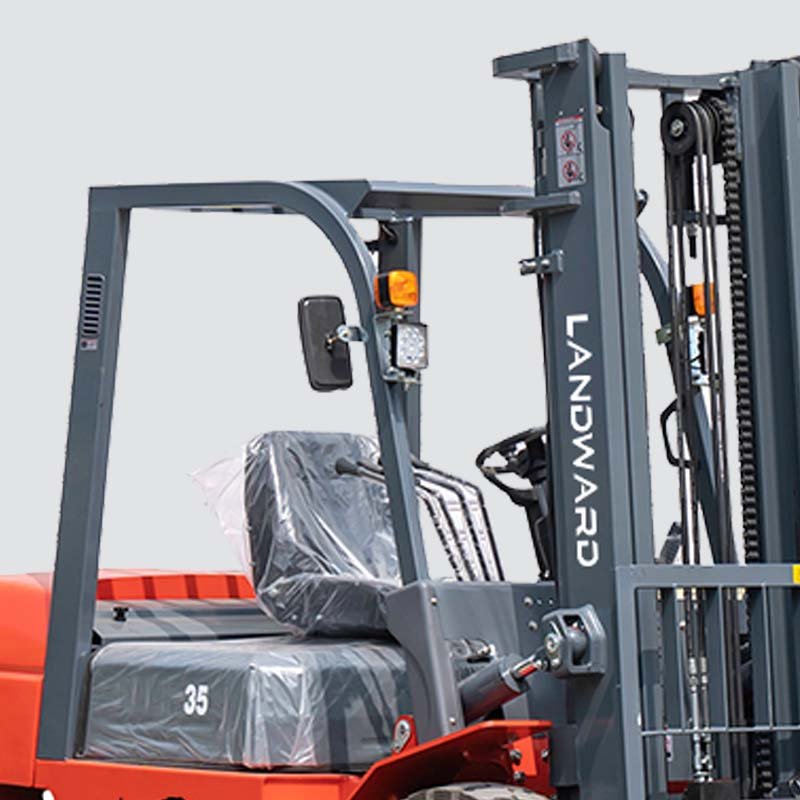

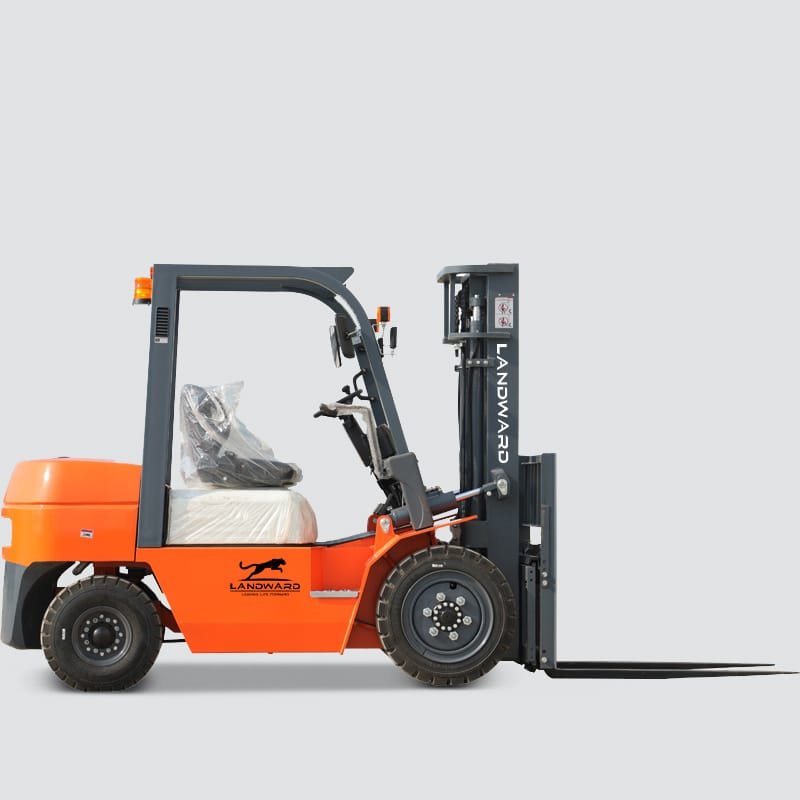

Diesel Forklift FD35

FD35 Outstanding visibility of the load and environment

Engine
XINCHAI 4D27G31
Engine Power
40kw/2500rpm
Lift height
3000mm
Load capacity
3500KG

Description

HL35 Diesel Forklift
The robust construction of the Diesel Forklift FD35as well as wear- and maintenance-free components like the hydrostatic drive system or the lubrication-free tilt cylinders ensure high operational availability. The hydraulic oil intake filter and coolant pump do not need to be replaced; the hydraulic oil only needs to be changed after 6000 operating hours. The powerful and robust industrial engine boasts maintenance-free spur gears, so there is no need to replace the toothed belt as is the case with car engines. The Engine Protection System (EPS) provides additional damage protection as do the Truck Health Monitoring sensors, especially in extreme outdoor temperatures. The transverse installation of the engine means the service openings are extra-large, so components that require maintenance can be accessed and replaced easily.
3500KG Lift height 3000mm
XINCHAI 4D27G31 Fork dimension 1070*122*50mm
40kw/2500rpm Overhead guard height 2165mm
1225mm Front overhang 495mm
7.00-12-12PR Max travel speed 19km/h
Diesel Forklift FD35
